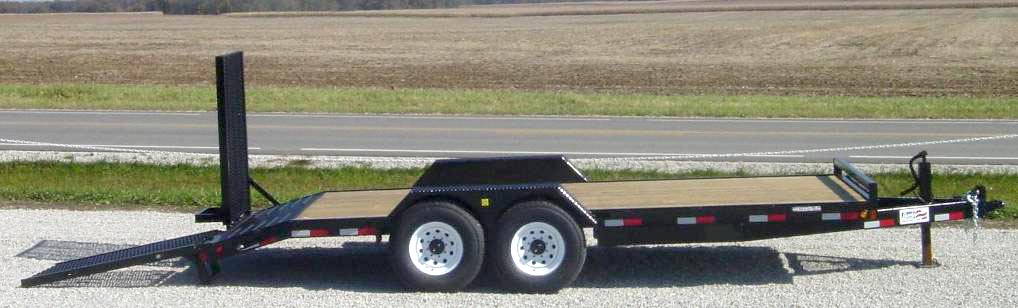

LE10KC5

10K 5" CHANNEL EQUIPMENT 83" WIDE DECK

Models
LE10K14C5 83” X 14’
LE10K16C5 83” X 16’
LE10K18C5 83” X 18’
LE10K20C5 83” X 20’



Specifications
GVWR 9,990 Lbs.
BED WIDTH 83"
LENGTHS 14', 16', 18', 20'
AXLE(S) 5,200 lb Straight, Dexter E-Z Lube
TIRES & WHEELS 225/R15 LRD Radial Tires, Mod Wheel
ELEC BRAKES Brakes on Both Axles
SUSPENSION FIve Leaf Heavy Duty Slipper Springs
JACK 2,000 LB
COUPLER 2-5/16" A-Frame Coupler
FENDERS 10" Smooth Jeep Style Teardrop Fenders
STAKE POCKETS Stake Pockets
CHASSIS 5" Structural Channel
TONGUE 5" Structural Channel Wrapped
CROSS MEMBERS 3" Structural Channel, 24" On Center
FLOOR 2", #1 Treated Pine
ELECTRICAL Industrial Grade Sealed Wiring Harness, LED Lights

FINISH Powder Coated
Options
Tire Options
225/R15 LRD RADIAL, White Mod Wheels
225/R15 LRD RADIAL, Silver Mod Wheels
225/R15 LRD RADIAL, Black Mod Wheels
225/R15 LRD RADIAL, Aluminum Mod Wheels
Coupler Options
14K, 2-5/16" A-FRAME COUPLER
14K, 2-5/16" ADJUSTABLE COUPLER (Requires Set Back Jack Option)
20K, PINTLE EYE ADJUSTABLE (Requires Set Back Jack Option)
25K, GOOSENECK W/ 2-5/16" ADJUSTABLE COUPLER
Jack Options
2,000 LB JACK (Available with A-FRAME Coupler Only)
2,000 LB SET BACK JACK
7,000 LB DROPLEG SET BACK JACK
12,000 LB DROPLEG SET BACK JACK
TWIN 12,000 LB JACKS  (Gooseneck Only)
TWIN 12,000 LB TWO SPEED JACKS (Gooseneck Only)
Fender Options
SMOOTH JEEP STYLE TEARDROP FENDERS
DIAMOND PLATE JEEP STYLE FENDERS
ALUMINUM ROCK GUARDS ON FENDERS (JEEP STYLE ONLY)
REMOVABLE STEEL FENDER
Tail Options
2' WOOD DOVETAIL
2' ANGLE IRON SELF CLEANING DOVETAIL
2' DIAMOND PLATE DOVETAIL
5', 3" CHANNEL STAND UP RAMPS
5', 3" CHANNEL EXTRA WIDE, CLOSE RUNG RAMPS
5', 4" CHANNEL EXTRA WIDE, CLOSE RUNG RAMPS
5', FULL WIDTH SPLIT RAMPS W/SPRING ASSIST, 4# GRATING
SET OF RAMP SPRINGS
Other Options
RUB RAIL
CHAIN BASKET IN TOUNGE
STORAGE BOX W/ STAINLESS KEY LOCK
TIE DOWN D-RING ASSEMBLY
SPARE TIRE MOUNT ONLY
RADIAL SPARE TIRE AND WHEEL MOUNTED ON TRAILER
