LE14K83 side

14K  6" CHANNEL EQUIPMENT HAULER HEAVY DUTY 83" WIDE DECK

Models
LE14K83X14C6 83" X 14'
LE14K83X16C6 83" X 16'
LE14K83X18C6 83" X 18'
LE14K83X20C6 83" X 20'

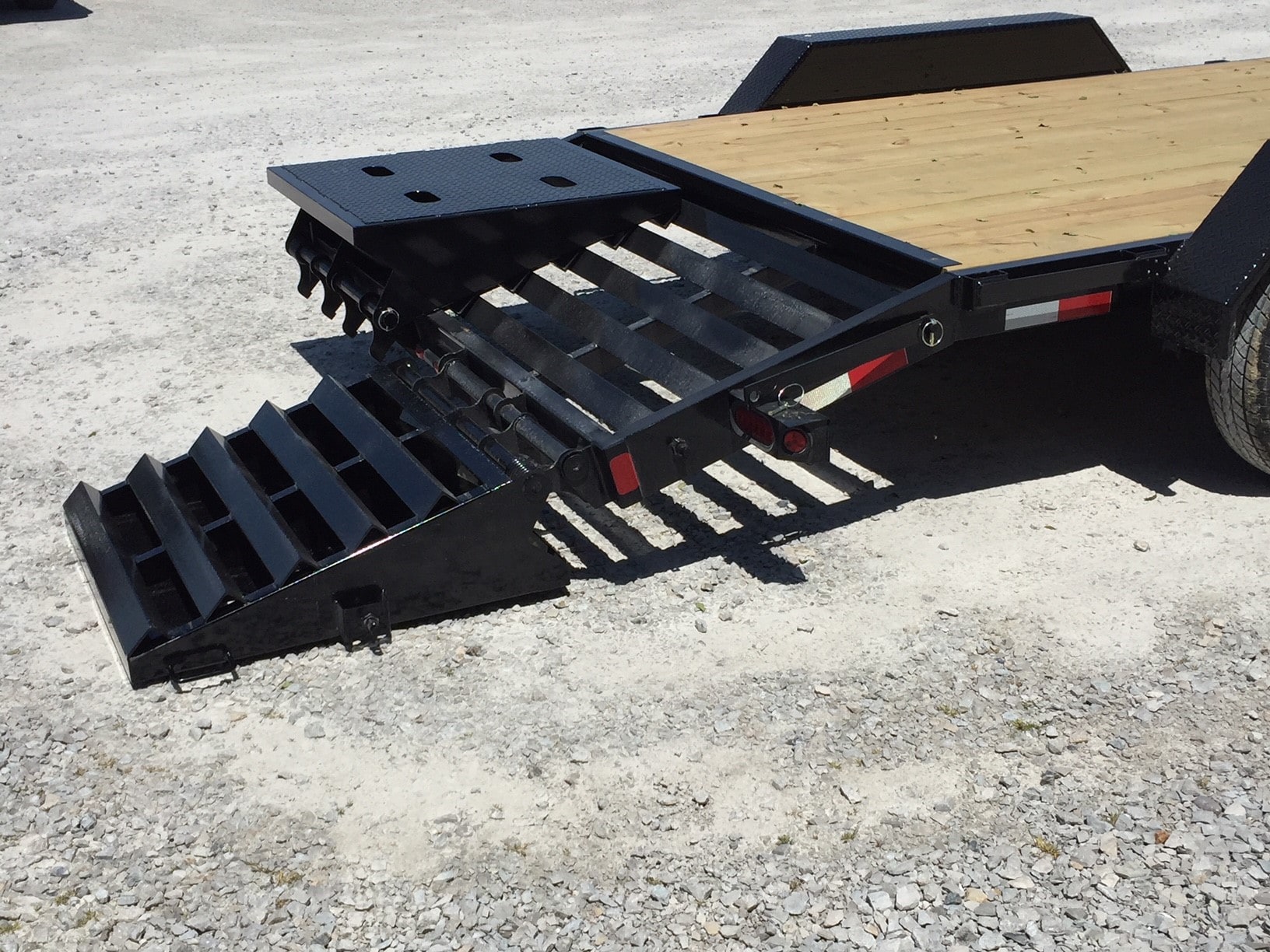

LE14K83 One Ramp Down
LE14K83 Ramp Pivot

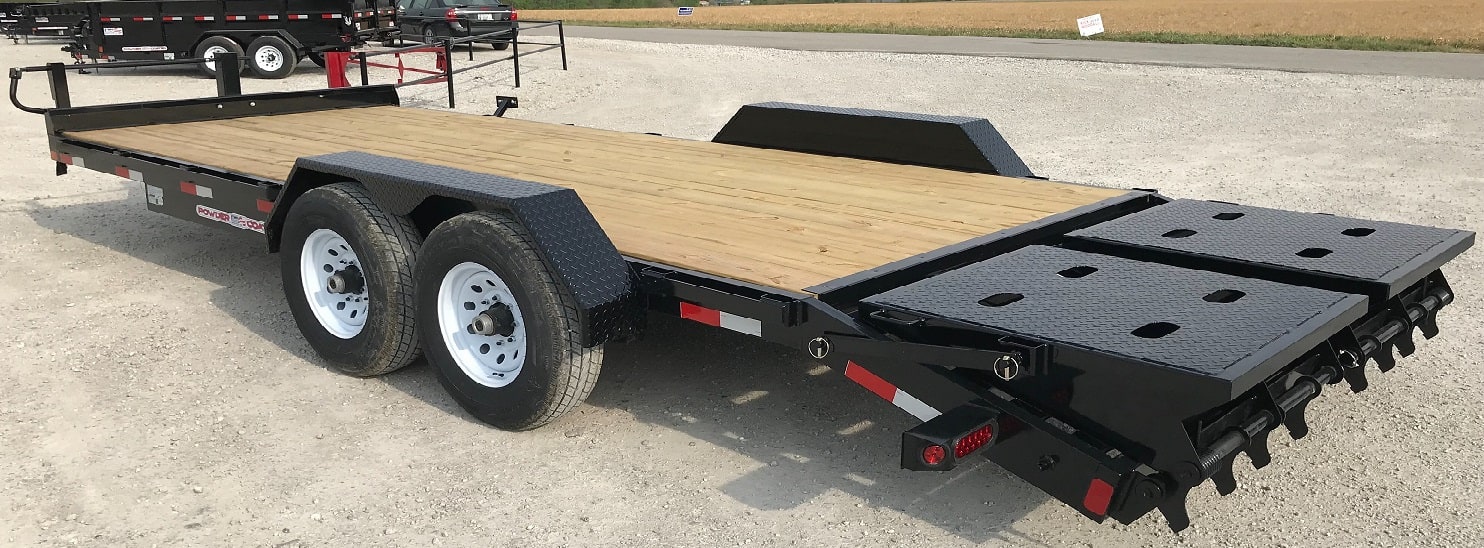

LE14K83 Rear

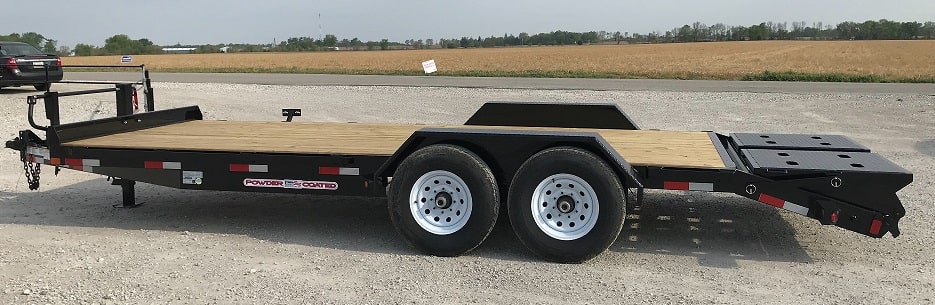

LE14K83 Side

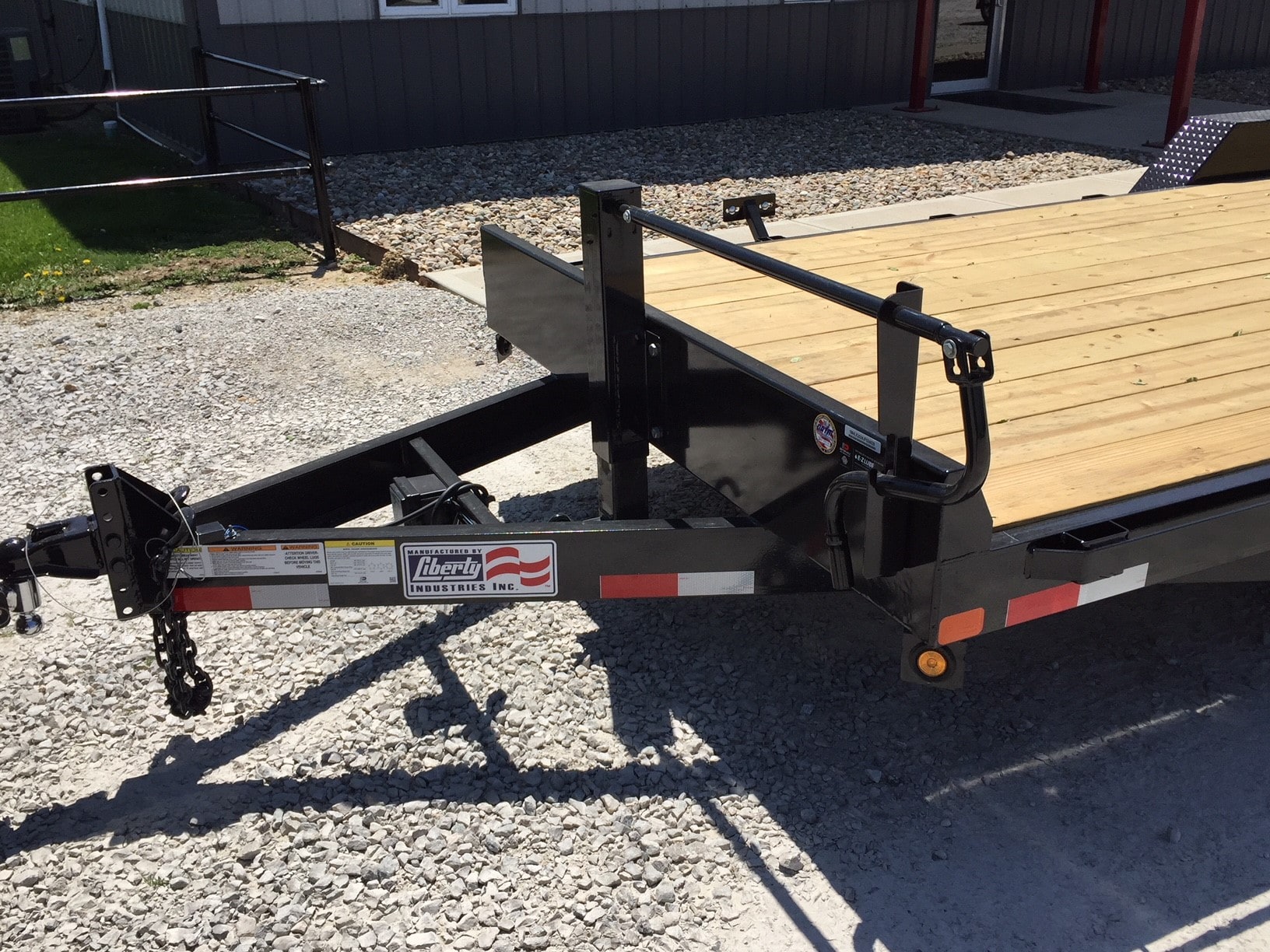

LE83LE14K83 Front

Specifications
GVWR 14,000 Lbs.
BED WIDTH 83"
LENGTHS 14', 16', 18', 20'
AXLE(S) 7,000 lb Straight, Dexter E-Z Lube
TIRES & WHEELS 235/R16 LRE Radial Tires, Mod Wheel
ELEC BRAKES Brakes on Both Axles
SUSPENSION FIve Leaf Heavy Duty Slipper Springs
JACK 2,000 LB
COUPLER 2-5/16" A-Frame Coupler
FENDERS 9.5" Smooth Jeep Style Teardrop Fenders
STAKE POCKETS Stake Pockets
CHASSIS 6" Structural Channel
TONGUE 6" Structural Channel Wrapped
CROSS MEMBERS 3" Structural Channel, 16" On Center
FLOOR 2", #1 Treated Pine
ELECTRICAL Industrial Grade Sealed Wiring Harness, LED Lights
LIGHTS LED sealed beam
FINISH PREP Sand Blasted, Degreased, Acid Washed, Sealer Rinsed
FINISH Powder Coated
Options
Tire Options
235/80R16 LRE RADIAL, White Mod Wheels
235/80R16 LRE RADIAL, Silver Mod Wheels
235/80R16 LRE RADIAL, Black Mod Wheels
235/80R16 LRE RADIAL, Aluminum Mod Wheels
Coupler Options
14K, 2-5/16" A-FRAME COUPLER
14K, 2-5/16" ADJUSTABLE COUPLER (Requires Set Back Jack Option)
20K, PINTLE EYE ADJUSTABLE (Requires Set Back Jack Option)
25K, GOOSENECK W/ 2-5/16" ADJUSTABLE COUPLER
Jack Options
2,000 LB JACK (Available with A-FRAME Coupler Only)
2,000 LB SET BACK JACK
7,000 LB DROPLEG SET BACK JACK
BOLT ON, 12,000 LB DROPLEG SET BACK JACK
Fender Options
SMOOTH JEEP STYLE TEARDROP FENDERS
DIAMOND PLATE JEEP STYLE FENDERS
ALUMINUM ROCK GUARDS ON FENDERS (JEEP STYLE ONLY)
REMOVABLE STEEL FENDER
Tail Options
2' WOOD DOVETAIL
2' ANGLE IRON SELF CLEANING DOVETAIL
2' DIAMOND PLATE DOVETAIL
3' ANGLE IRON SELF CLEANING DOVETAIL WITH WEDGE RAMPS (16'-24' ONLY)
5', 3" CHANNEL STAND UP RAMPS
5', 3" CHANNEL EXTRA WIDE, CLOSE RUNG RAMPS
5', 4" CHANNEL EXTRA WIDE, CLOSE RUNG RAMPS
5', FULL WIDTH SPLIT RAMPS W/SPRING ASSIST, 4# GRATING
SET OF RAMP SPRINGS
Other Options
CHAIN BASKET IN TONGUE
STORAGE BOX W/ STAINLESS KEY LOCK
TIE DOWN D-RING ASSEMBLY
SPARE TIRE MOUNT ONLY
RADIAL SPARE TIRE AND WHEEL MOUNTED ON TRAILER

Parts? Questions? Call us at 765-246-4031
